Grenadier brake line prices & query

[CL66SEN]

I am looking for a spare set of brake hoses to take with me on an upcoming overlanding trip and have been given the following quote (£915 incl. VAT) from an INEOS dealer outside of London. I am surprised by the cost, does this match what others are seeing?

Furthermore, when I did an online check against these reference numbers, the reply states that these are not valid INEOS codes, as INEOS uses 10-character part numbers starting with GRA- followed by a 3-letter system code, following by a further -two digits for the version. e.g. GRA-BRB-010147.

Any advice and guidance appreciated.



[Logsplitter]

How’s this ? . From the portal. This is for 2023 petrol B58 engine model.



[landmannnn]

I am looking for a spare set of brake hoses to take with me on an upcoming overlanding trip and have been given the following quote (£915 incl. VAT) from an INEOS dealer outside of London. I am surprised by the cost, does this match what others are seeing?

Furthermore, when I did an online check against these reference numbers, the reply states that these are not valid INEOS codes, as INEOS uses 10-character part numbers starting with GRA- followed by a 3-letter system code, following by a further -two digits for the version. e.g. GRA-BRB-010147.


View attachment 7912712

Any advice and guidance appreciated.

Do you have anyone local who makes them up? They are way cheaper than that,

Buzz Overland would be a good try as they will probably know the specs.



[LeeroyJ]

My Grenadier is currently at my dealer having the big brake kit from Agile Offroad installed. The entire kit is $3700 and includes braded steel brake lines (in addition to all the other components). I'd suggest reaching out to Agile and see if they will sell the brake lines separately.



[CL66SEN]

Thanks gents, much appreciated, I'll follow up on all of your suggestions.



[CountyV8]

You can get braided stainless lines made up just take the originals off they get them to make a copy have done that with my Land Rovers in the past



[CL66SEN]

A frustrating day...

I contacted INEOS who told me that the part numbers taken off the schematics shown above from the portal are now no longer available.

I spoke with HEL and Goodridge who both said that they do not do INEOS brake lines and can't help. I also had an email from Agile Offroad - the lines that they have are specific to the aftermarket brakes that they fit and hence are not suitable as OEM replacements.

I tried a few other 'specialists' from online research today, a few of whom had no idea what an INEOS was... no joy.

Alex at Buzz Overland can't help directly, but has given me the details for someone else to contact (Pioneer4x4). I'll give them a try tomorrow.



[Logsplitter]

A frustrating day...

I contacted INEOS who told me that the part numbers taken off the schematics shown above from the portal are now no longer available.

I spoke with HEL and Goodridge who both said that they do not do INEOS brake lines and can't help. I also had an email from Agile Offroad - the lines that they have are specific to the aftermarket brakes that they fit and hence are not suitable as OEM replacements.

I tried a few other 'specialists' from online research today, a few of whom had no idea what an INEOS was... no joy.

Alex at Buzz Overland can't help directly, but has given me the details for someone else to contact (Pioneer4x4). I'll give them a try tomorrow.

That’s annoying. I wonder if all the other part numbers on the portal are no longer available? If so making the parts schematic next to useless. I’m hoping not.



[pmatusov]

My common path to custom brake hoses is to know exactly threads on both ends of a factory hose, buy the ends'-to- -4 AN fittings, and -4 AN steel-braided hose in necessary lengths.

It may be a bit more difficult OCONUS, but here's the link - https://www.holley.com/brands/earls/?utm_term=earls performance&



[CountyV8]

I have had James Lister in West Bromwich make me Teflon braded lines in stainless steel with pvc tube over protection and stainless fittings from patten hoses. Took in the old hose and they copied it.



[landmannnn]

A frustrating day...

I contacted INEOS who told me that the part numbers taken off the schematics shown above from the portal are now no longer available.

I spoke with HEL and Goodridge who both said that they do not do INEOS brake lines and can't help. I also had an email from Agile Offroad - the lines that they have are specific to the aftermarket brakes that they fit and hence are not suitable as OEM replacements.

I tried a few other 'specialists' from online research today, a few of whom had no idea what an INEOS was... no joy.

Alex at Buzz Overland can't help directly, but has given me the details for someone else to contact (Pioneer4x4). I'll give them a try tomorrow.

OK, let me help you out... I am assuming you are looking for a trail repair

1. There are 6 Flexi hoses.
2. All fittings are M10x1
3. The 4 to the wheels have a male at one end and a female circlip fitting at the other.
4. The two extra ones on the rear axle have female circlip fittings on both ends.
5.The right side ones are the same as the left ones

Some pictures:

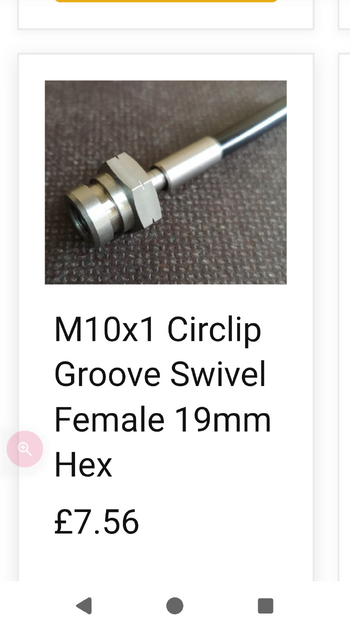

M10 female circlip fitting.

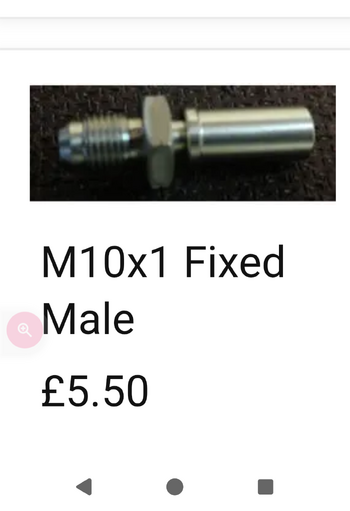

M10 male


2 suggestions:

Go to this site and select M10 male and M10 female, selecting the right length of course. About £20 each.

Make your own steel braided AN3 brake hose (Stainless)

Make your own brake hose with stainless steel fittings Here you can easily make your own steel braided brake hose / clutch hose / hydraulic hose with stainless steel fittings. All hoses are crimped in special crimping machines at Speeding, these can not be made yourself at home. If you want...

www.speedingparts.co.uk

My suggestion however is this_

Go to car builder solutions under self assembly brake lines.
Buy a length of braided hose about £8
Buy some fittings, about £5 each.

Self Assembly

One-stop shop for Kit Car and Classic Car Parts, Kit Car repairs and painting. Tools and Accessories for the Kit Car and Classic Car Enthusiast.

www.carbuilder.com

You will then be able to make up lines if you damage them. Dead easy as per this video.

View: https://youtu.be/5tdsgZ-KfWI?si=kWijwBV9Myqd8u30

It will save a lot of space and money, you might even be able to help out a fellow traveller as this stuff is pretty standard.



[Logsplitter]

OK, let me help you out... I am assuming you are looking for a trail repair

1. There are 6 Flexi hoses.
2. All fittings are M10x1
3. The 4 to the wheels have a male at one end and a female circlip fitting at the other.
4. The two extra ones on the rear axle have female circlip fittings on both ends.
5.The right side ones are the same as the left ones

Some pictures:
M10 female circlip fitting.View attachment 7912917

M10 male
View attachment 7912918

2 suggestions:

Go to this site and select M10 male and M10 female, selecting the right length of course. About £20 each.

Make your own steel braided AN3 brake hose (Stainless)

Make your own brake hose with stainless steel fittings Here you can easily make your own steel braided brake hose / clutch hose / hydraulic hose with stainless steel fittings. All hoses are crimped in special crimping machines at Speeding, these can not be made yourself at home. If you want...

www.speedingparts.co.uk

My suggestion however is this_

Go to car builder solutions under self assembly brake lines.
Buy a length of braided hose about £8
Buy some fittings, about £5 each.

Self Assembly

One-stop shop for Kit Car and Classic Car Parts, Kit Car repairs and painting. Tools and Accessories for the Kit Car and Classic Car Enthusiast.

www.carbuilder.com

You will then be able to make up lines if you damage them. Dead easy as per this video.

View: https://youtu.be/5tdsgZ-KfWI?si=kWijwBV9Myqd8u30

It will save a lot of space and money, you might even be able to help out a fellow traveller as this stuff is pretty standard.

You are a wealth of information. Good shout . I’m going to get hose and fittings for my spares kit. Thankyou



[landmannnn]

You are a wealth of information. Good shout . I’m going to get hose and fittings for my spares kit. Thankyou

No problem. I think you owe me £915 less £30. I will take a cheque!
