There does look line a heap of hidey holes for mud and cake to get in under that chassis. Will need a rigorous clean after the big hauls.

That's what I was thinking and thought some plastic undertray to keep the crap out ~ but then you'd create some nice hidey holes for mud to accumulate. Perhaps that's why on the Scottish journo gaunt they drove into the loch - to clean it off for snooping eyes.



[MrMike]

I think I read elsewhere that one ad blue tank is heated

All Adblue tanks are, this is done for colder climates



[bemax]

All Adblue tanks are, this is done for colder climates

I just payed more than 800 € for the exchange of the temperature sensor of the Adblue tank…
I hope they are better accessible in the Grenadier!



[Stu_Barnes]

Here are some pictures of a customer car. No PTO…
View attachment 7805250View attachment 7805251View attachment 7805252

I sincerely hope that there is a metal cover for the plastic gearbox sump panel pictured.



[Wayneos]

I sincerely hope that there is a metal cover for the plastic gearbox sump panel pictured.

I'll be looking at one of these..

2014-2022 w/ZF-8 Speed Transmission Heavy-Duty Cast Aluminum Deep Transmission Pan

Transmission Pan - Heavy-Duty Cast Aluminum - 8HP70/8HP75 Features:Cast-aluminum construction Increased heat dissipation Reduced oil temperatures Increased fluid capacity Stainless steel drain plug Includes replaceable filter 1/8 NPT tempe

ppepower.com



[Krabby]

Seriously hope IA have a game plan for that otherwise most certainly be going aftermarket to protect the trans.



[DaveB]

I'll be looking at one of these..

2014-2022 w/ZF-8 Speed Transmission Heavy-Duty Cast Aluminum Deep Transmission Pan

Transmission Pan - Heavy-Duty Cast Aluminum - 8HP70/8HP75 Features:Cast-aluminum construction Increased heat dissipation Reduced oil temperatures Increased fluid capacity Stainless steel drain plug Includes replaceable filter 1/8 NPT tempe

ppepower.com

Cast aluminium cracks extremely easily if you hit a rock



[trobex]

Seriously hope IA have a game plan for that otherwise most certainly be going aftermarket to protect the trans.

That isn't a production undercarriage though, surely in final they WOULD/MUST have adequate protection for critical drive chain...??? By surely, I mean, mandatory.



[Wayneos]

That isn't a production undercarriage though, surely in final they WOULD/MUST have adequate protection for critical drive chain...??? By surely, I mean, mandatory.

These are frame grabs from the Africa Overland vid showing a prototype. I doubt very much IA chose to put under body protection on a PT and decided against it for production vehicles. I think we'll be fine!



[Wayneos]

Cast aluminium cracks extremely easily if you hit a rock

Better cooling, more fluid (if you go the deeper pan), reusable, rigid and I hate plastic. Given the underbody protection (see above) I doubt that pan will ever see a rock.



[AnD3rew]

Here are some pictures of a customer car. No PTO…
View attachment 7805250View attachment 7805251

Wonder if some of the aftermarket replacement transmission pans are a direct fit, to replace the plastic pan and filter with a replacement metal pan with replaceable filter.



[Wayneos]

Wonder if some of the aftermarket replacement transmission pans are a direct fit, to replace the plastic pan and filter with a replacement metal pan with replaceable filter.

These guys make pans for 8HP50 and the 8HP75 (the Grenadier uses the 8HP51 and 8HP76) There may or may not be significant differences in the physical pans from the 50 to 51 and 75 to 76, but given that the pan fits across a range of ZF units, my guess would be that they would fit. There is also the cross reference to the BMW part number.

2010-2024 w/ ZF-8 Speed Heavy-Duty Cast Aluminum Transmission Pan

Transmission Pan for ZF 8-Speed - Heavy-Duty Cast Aluminum Specifically designed for the Jeep Grand Cherokee, PPE has engineered an exclusive removable and replaceable oil filter. That means unlike the factory part, there’s no n

ppepower.com



[MrMike]

I just payed more than 800 € for the exchange of the temperature sensor of the Adblue tank…
I hope they are better accessible in the Grenadier!

What vehicle was that on?



[DaveB]

These guys make pans for 8HP50 and the 8HP75 (the Grenadier uses the 8HP51 and 8HP76) There may or may not be significant differences in the physical pans from the 50 to 51 and 75 to 76, but given that the pan fits across a range of ZF units, my guess would be that they would fit. There is also the cross reference to the BMW part number.

2010-2024 w/ ZF-8 Speed Heavy-Duty Cast Aluminum Transmission Pan

Transmission Pan for ZF 8-Speed - Heavy-Duty Cast Aluminum Specifically designed for the Jeep Grand Cherokee, PPE has engineered an exclusive removable and replaceable oil filter. That means unlike the factory part, there’s no n

ppepower.com

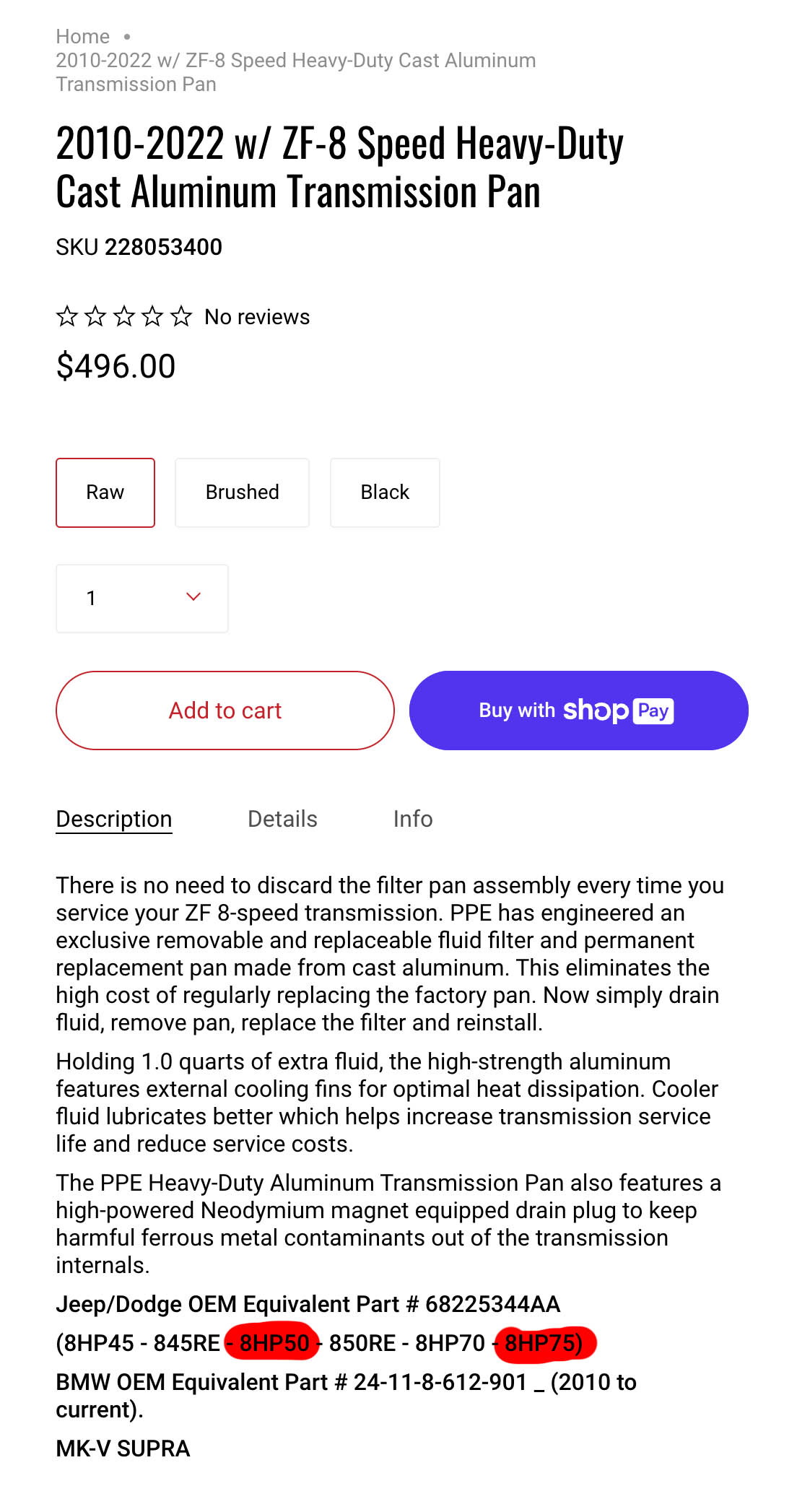

View attachment 7805307

I wouldn't trust them
They can't even spell aluminium correctly



[James]

The plastic pan looks pretty high above the crossmember. Not impossible to hit, but pretty difficult.
the recommended oil change is 8 years/80,000km, so not a rush to decide….
it does seem that ineos are releasing additional underbody plates after launch. Might wait and see…



[DCPU]

These are frame grabs from the Africa Overland vid showing a prototype. I doubt very much IA chose to put under body protection on a PT and decided against it for production vehicles. I think we'll be fine!

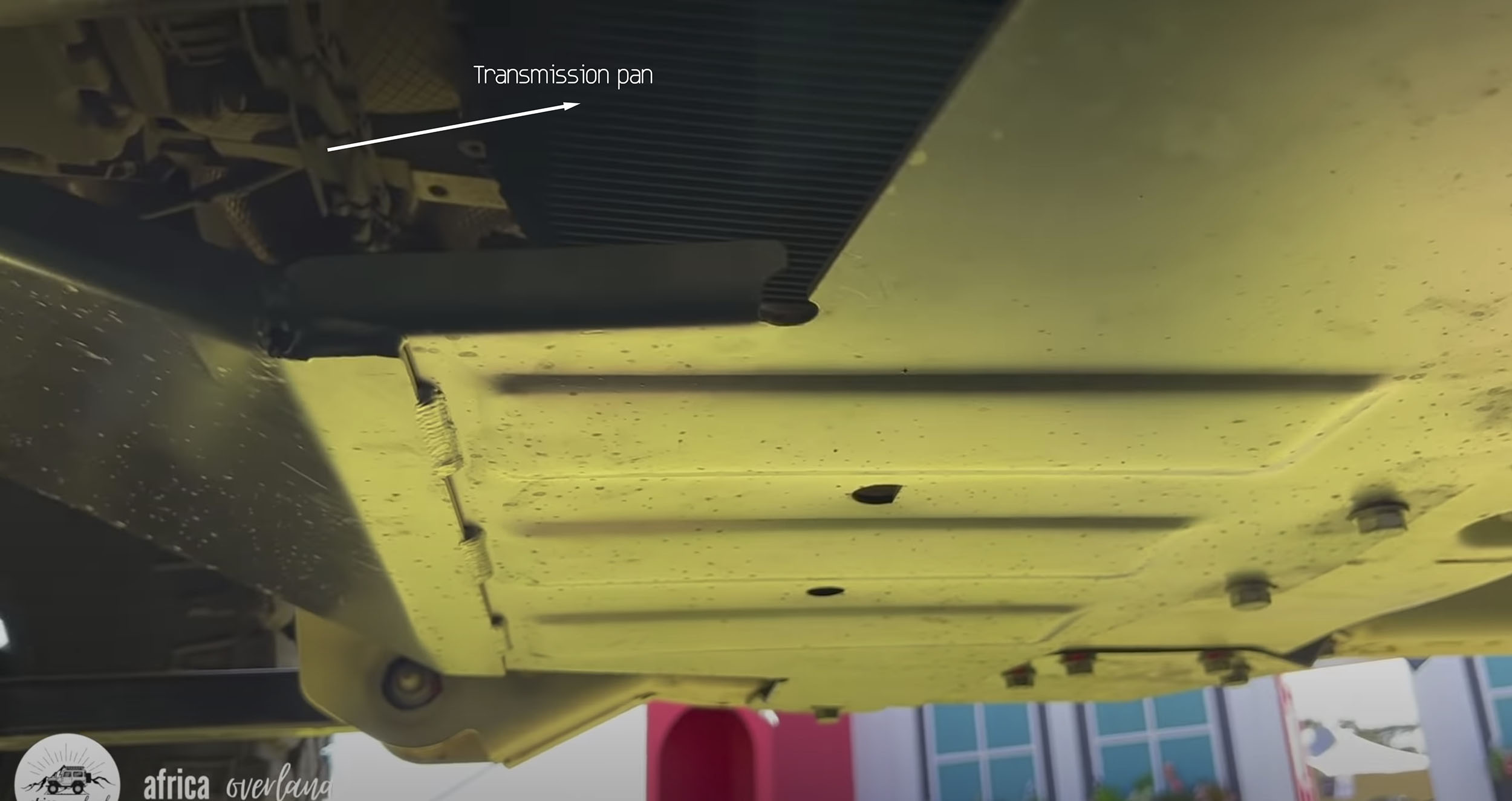

View attachment 7805303View attachment 7805304

We've also seen prototypes with diff guards fitted.

These may well be testing of the parts we've already been told by @Halliwell Jones Chester are/were coming in August:

9th 10th August INEOS grenadier with Halliwell Jones

My original Q was: "Justin Hocevar, Head Shed Oz has confirmed that there are 3 different sets of spring. Can we ask what they are, what the differences are between them, and which model, or option gets which spring?" Then other Qs were: Q2. "How about some photos and details of the 4...

www.theineosforum.com



[marko]

We've also seen prototypes with diff guards fitted.

These may well be testing of the parts we've already been told by @Halliwell Jones Chester are/were coming in August:

View attachment 7805319

9th 10th August INEOS grenadier with Halliwell Jones

My original Q was: "Justin Hocevar, Head Shed Oz has confirmed that there are 3 different sets of spring. Can we ask what they are, what the differences are between them, and which model, or option gets which spring?" Then other Qs were: Q2. "How about some photos and details of the 4...

www.theineosforum.com

Yes I was told the same by IA (except they didn’t mention a specific month when the parts would be available) at my PT-02 test drive last year. They also mentioned that the reason for the delayed availability for these parts was their original supplier was based in Ukraine.

The scale model has diff guards and a transmission guard in place as well - but it's just a model.



[DenisM]

Yes I was told the same by IA (except they didn’t mention a specific month when the parts would be available) at my PT-02 test drive last year. They also mentioned that the reason for the delayed availability for these parts was their original supplier was based in Ukraine.

The scale model has diff guards and a transmission guard in place as well - but it's just a model.

In one of the more recent interviews Sir Jim says that ?58 components are sourced in the Ukraine.....



[Inez]

Yes I was told the same by IA (except they didn’t mention a specific month when the parts would be available) at my PT-02 test drive last year. They also mentioned that the reason for the delayed availability for these parts was their original supplier was based in Ukraine.

The scale model has diff guards and a transmission guard in place as well - but it's just a model.

I have the prototype scale model and my skid plates are plastic. Do you have the production scale model and are your skid plates metal?



[Wayneos]

In one of the more recent interviews Sir Jim says that ?58 components are sourced in the Ukraine.....

Seriously.. So those 58 components cannot be made in any other country on planet Earth?
